1. Install the starter to the transmission.

NOTE:

Tighten the starter and bracket (a) together using the upper bolt securing the starter.

Tightening torque:

50 N·m (5.1 kgf-m, 36.9 ft-lb)

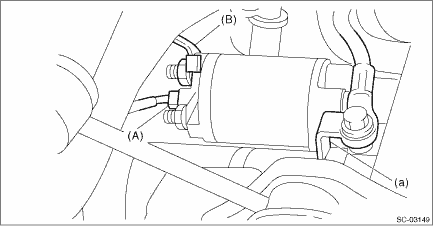

2. Connect the connector (A) to the starter, and install the terminal (B).

Tightening torque:

10 N·m (1.0 kgf-m, 7.4 ft-lb)

3. Install the air intake boot. Air Intake Boot > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Install the collector cover.

Assembly

1. Apply grease to the shaft sliding surfaces of the internal gear assembly.Grease:Multemp #6129 or equivalent2. Assemble the shaft to the internal gear assembly.3. Assemble the overrunning clutch as ...

Inspection

1. ARMATURE1. Check the commutator for signs of seizure or stepped wear caused by roughness of the surface. If there is light wear, use sandpaper to repair.2. Check for runout on the commutator. If ex ...
