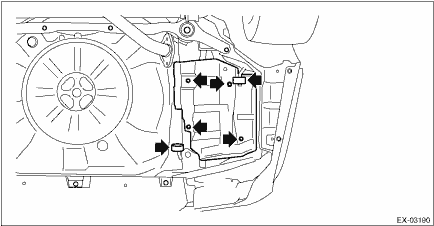

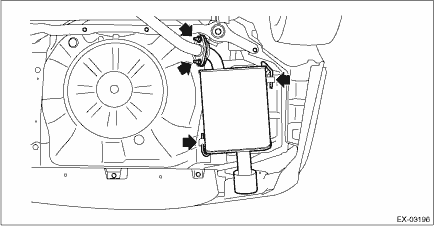

1. Install the cushion rubber and the heat shield cover to the vehicle body. Tightening torque: 10 N·m (1.0 kgf-m, 7.4 ft-lb) 2. Install the muffler to the cushion rubber. 3. Install the bolts and self-locking nuts securing the rear exhaust pipe to the muffler. NOTE: • Use a new gasket and self-locking nut. • After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing. Tightening torque: 48 N·m (4.9 kgf-m, 35.4 ft-lb) 4. Lower the vehicle. |
Installation
1. Open the fuel filler lid.2. Insert the fuel filler pipe from inside of the rear fender.3. Install the fuel filler pipe to the vehicle body and connect the evaporation hose (A) to the fuel filler pipe.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)4. Align the cutout on the fuel filler pip ...
