Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Rear wiper arm / Installation

1. Install the arm assembly - rear wiper.

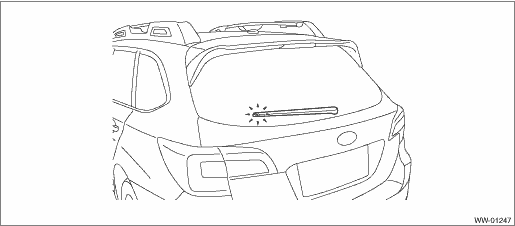

(1) Assemble the blade assembly - rear wiper aligning it with the marking on the glass.

(2) Tighten the arm assembly - rear wiper to the specified torque, and install the cover - rear wiper arm.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

2. Check the position of rear wiper. Rear Wiper Arm > ADJUSTMENT
