Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

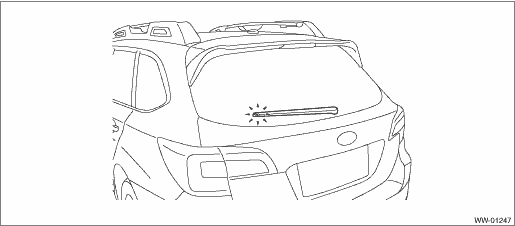

1. Operate the rear wiper once. 2. Check that the wiper blade is aligned with the point mark.
3. If the wiper blade is not aligned with the point mark, perform the removal and installation of the rear wiper. Rear Wiper Arm > REMOVAL |
