Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

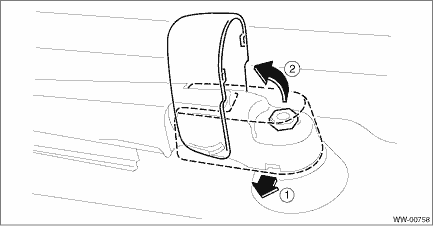

1. Pull up the cover - rear wiper arm. 2. Remove the nut, and remove the arm assembly - rear wiper.
|
Rear wiper arm
...
