Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

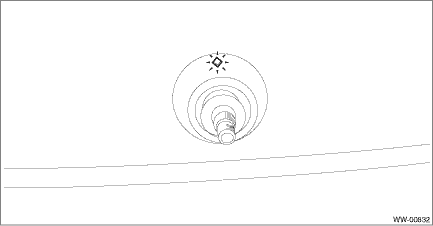

1. Check that the mark on the cap - pivot wiper faces up.
2. Install the motor assembly - rear wiper. (1) Install the bolts, and install the motor assembly - rear wiper. Tightening torque: 6 N·m (0.6 kgf-m, 4.4 ft-lb) (2) Install the harness connector of the motor assembly - rear wiper. 3. Install the arm assembly - rear wiper. (1) Install the nuts, and install the arm assembly - rear wiper. Tightening torque: 8 N·m (0.8 kgf-m, 5.9 ft-lb) (2) Install the cover - rear wiper arm. 4. Install the rear gate trim. Rear Gate Trim > INSTALLATION 5. Connect the ground terminal to battery sensor. NOTE |
Inspection
CAUTION:Fix the motor to prevent the motor from being shorted by moving during operation.1. Connect the battery to the motor assembly - rear wiper connector, and check that the motor assembly - rear w ...
