Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Airbag system / Seat cushion airbag module / Installation

CAUTION:

• Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

• Do not allow harness and connectors to interfere or get tangled up with other parts.

1. Before installation, inspect the following items and replace any faulty part with a new one.

• Airbag module is cracked or deformed.

• Frame assembly - front seat cushion is cracked or deformed.

• Harness and/or connector is cracked, deformed or open.

• Harness wire is exposed.

• Installation of seat cushion airbag module is difficult due to the condition of the frame assembly - front seat cushion.

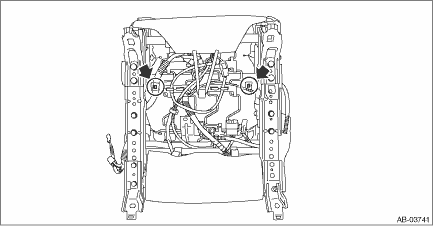

2. Install the seat cushion airbag module.

CAUTION:

• Be careful that the end of airbag module is not turned over.

• Be sure to insert the connector in until it is locked.

• Press in the connector securely. Then pull it gently to make sure that it is locked.

Tightening torque:

6 N·m (0.6 kgf-m, 4.4 ft-lb)

3. Assemble the front seat. Front Seat > ASSEMBLY

CAUTION:

• After assembling the seat cushion, make sure that the two-dimensional codes (two positions) attached on the seat cushion airbag module can be seen. If it is not assembled correctly, the seat cushion airbag may not operate properly.

• After assembling the seat, operate the reclining and sliding mechanisms to check that the airbag harness is not caught.

4. Install the front seat assembly to the body. Front Seat > INSTALLATION

5. Connect the ground terminal to battery sensor. NOTE
