Subaru Legacy BN/BS (2015-2019) Service Manual: Location

Subaru Legacy BN/BS (2015-2019) Service Manual / Communication system / Relay and fuse / Location

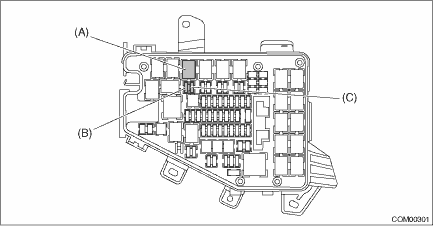

Main fuse box (M/B)	Horn relay	(A)
	Fuse 7.5 A (horn assembly - Hi)	(B)
	Fuse 7.5 A (horn assembly - Lo)	(C)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit

1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.2. CHECK RELAY1. Measure the resistance between relay terminals.Terminal No.Inspection conditionsStan ...
