1. LETTER MARK

Align the application tape to the following position, and adhere the letter mark.

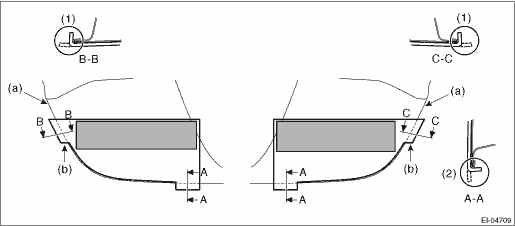

• Sedan model

(a)

Trunk lid panel end

(b)

Application tape end

(1)

Bend the end of the application tape to fit along the end of the trunk lid panel.

(2)

Bend the end of the application tape to fit along the end of the trunk lid panel.

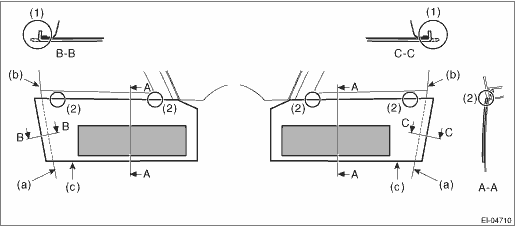

• OUTBACK model

(a)

End of rear gate panel

(b)

End of rear finisher light

(c)

Application tape end

(1)

Bend the end of the application tape to fit along the end of the rear gate panel.

(2)

Align the top end of application tape to the bottom of the rear finisher light.
