The keyless access with push-button start system uses radio waves of 134 kHz, in addition to the radio waves used for the remote keyless entry system. The radio waves are periodically output from the antennas installed on the vehicle as shown in the following illustrations.

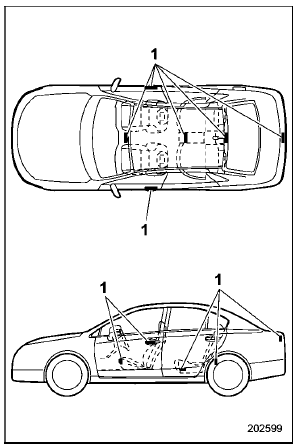

Legacy

Radio waves used for the keyless access with push-button start system

Antenna

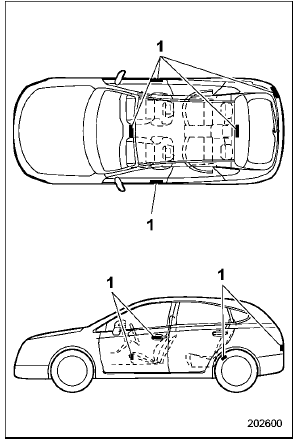

Outback

Radio waves used for the keyless access with push-button start system

Antenna

Regarding setting

NOTE The operational/non-operational setting for the keyless access function can be changed. For the setting procedure, refer to "Disabling keyless access function" . The setting can ...
