Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

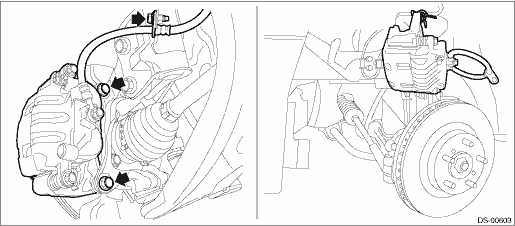

1. Lift up the vehicle, and then remove the front wheels. 2. Remove the disc brake assembly. (1) Remove the brake hose bracket. (2) Remove the mounting bolt, and remove the disc brake assembly. (3) Prepare wiring harnesses etc. to be discarded, and suspend the disc brake assembly from the strut assembly.

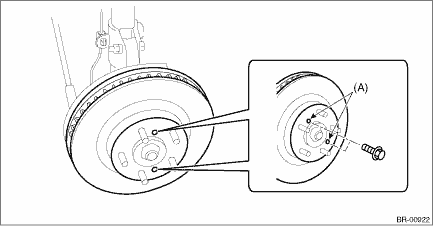

3. Remove the disc rotor. NOTE: When the disc rotor is difficult to be removed, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.
|
Front disc rotor
...
Inspection
1. DISC ROTOR RUNOUT CHECK1. Check the hub unit COMPL - front axle for free play and runout before the inspection of disc rotor runout limit. Front Hub Unit Bearing > INSPECTION2. Tighten the wheel n ...
