1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

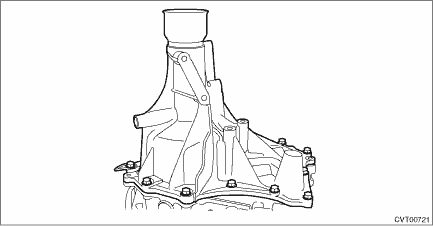

2. Remove the extension case and transmission hanger.

NOTE:

The total number of extension case mounting bolts is 13.

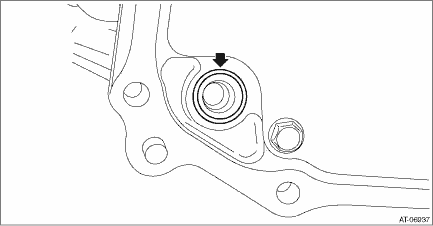

3. Remove the O-rings.

Adjustment

NOTE:When replacing the extension case, select the transfer drive gear shim and transfer driven gear shim. Reduction Drive Gear > ADJUSTMENT Transfer Clutch > ADJUSTMENT ...
