Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Oil pump / Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the torque converter assembly. Torque Converter Assembly > REMOVAL

3. Remove the oil pump chain cover. Oil Pump Chain > REMOVAL

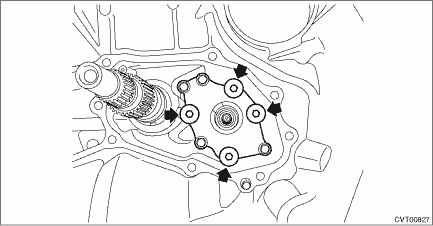

4. Remove the oil pump and the plate.

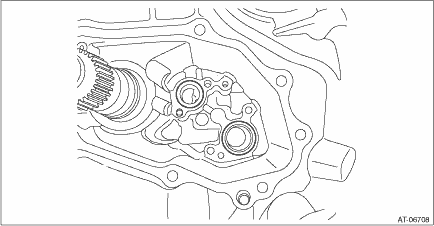

5. Remove the O-rings.

Inspection

Check the following items.• Check the oil pump for damage and wear.• Rotate the oil pump by hand, and check that it rotates smoothly.1. Measure the secondary pressure. Secondary Pressure ...
