1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

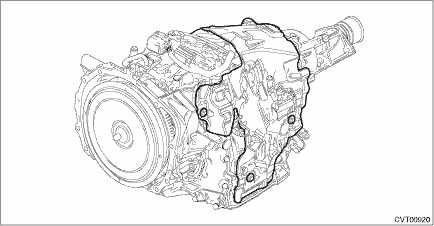

2. Remove the transmission case cover.

3. Remove the air breather hose. Air Breather Hose > REMOVAL

4. Remove the transmission hanger and transmission radio ground cord.

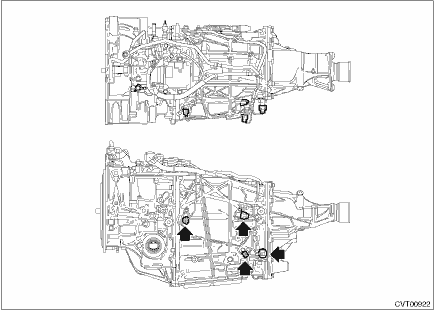

5. Disconnect the harness connector from the turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.

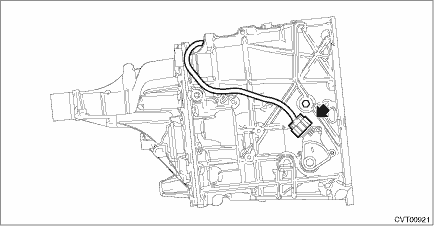

6. Disconnect the harness connector from the inhibitor switch.

7. Disconnect the transmission harness stay and ground terminal, and remove the harness clip.

8. Remove the transmission harness connector from the transmission harness stay.

9. Clean the transmission exterior.

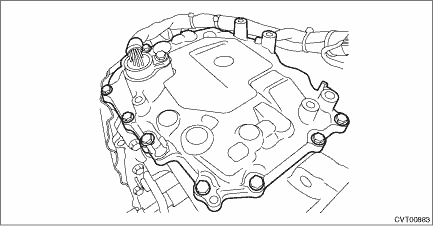

10. Remove the valve cover and gasket.

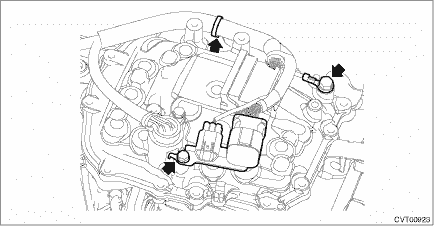

11. Disconnect the harness connector from the control valve body.

12. Remove the transmission harness.

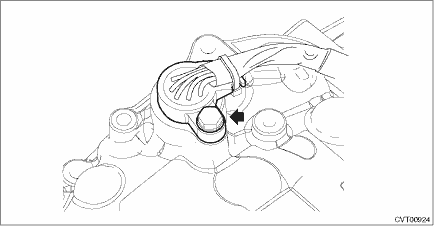

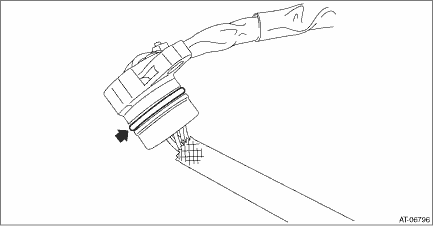

13. Remove the O-rings.
