1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

3. Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL

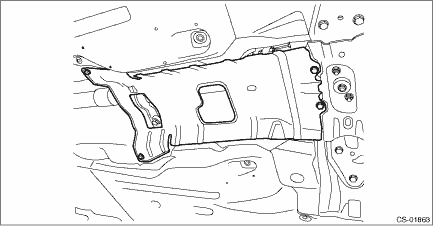

4. Remove the center exhaust cover.

5. Set the transmission jack under the transmission. Make sure that the support plate of transmission jack does not touch the oil pan.

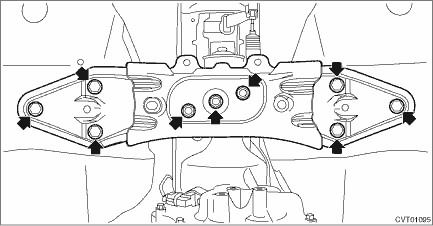

6. Remove the transmission rear crossmember.

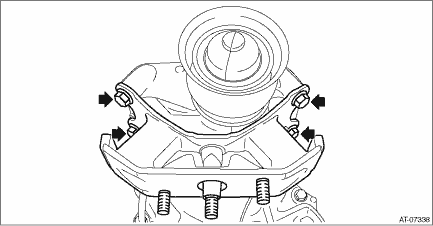

7. Remove the rear cushion rubber.

Inspection

• Check the crossmember for bends or damage.• Check that the cushion rubber is not stiff, cracked or otherwise damaged. ...
