Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior body panels / Front sealing cover / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

3. Remove the sealing cover - front door.

CAUTION:

• Carefully remove the butyl tape. Excessive force will easily break the cover.

• If the sealing cover - front door gets broken, replace it with a new part.

• Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

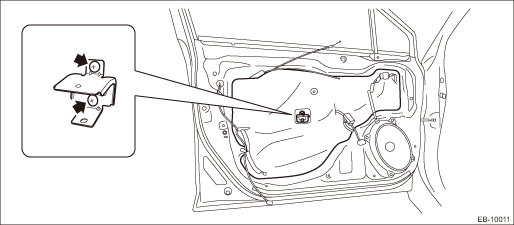

(1) Remove the screw to remove the bracket - door trim front.

(2) Disconnect connectors.

(3) Carefully remove the butyl tape to remove the sealing cover - front door.

Inspection

If the sealing cover - front door is broken, replace it with a new part. ...
