Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Front under cover / Removal

1. Lift up the vehicle.

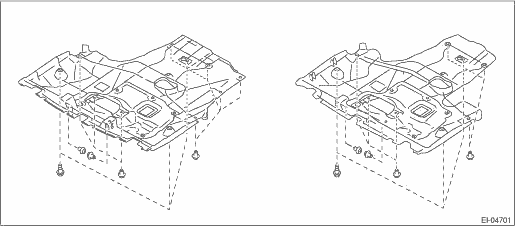

2. Remove the bolts and clips, and remove the under cover - front.

Installation

CAUTION:Install the under cover so that the under cover front end (b) comes inside of the bumper face - front (a).1. Install the under cover - front.Tightening torque:Refer to “COMPONENT” ...

Other materials:

Inspection
1. MOVING LOAD OF SUNSHADE ASSEMBLY1. Attach a spring scale together with a cloth to the edge of sunshade assembly.2. Pull the spring scale to check the moving load of the sunshade assembly.Moving load of sunshade assembly:17±8.5 N (1.73 kgf, 3.8 lbf±0.87 kgf, 1.9 lbf)NOTE:Moving load is larger at ...
