Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

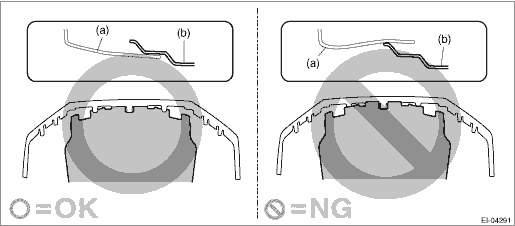

CAUTION: Install the under cover so that the under cover front end (b) comes inside of the bumper face - front (a).
1. Install the under cover - front. Tightening torque: Refer to “COMPONENT” of “General Description”. General Description > COMPONENT 2. Lower the vehicle. |
Removal
1. Lift up the vehicle.2. Remove the bolts and clips, and remove the under cover - front. ...
