Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Mud guard / Removal

1. Lift up the vehicle.

2. Remove the wheels.

3. Remove the clips, then remove the mud guard.

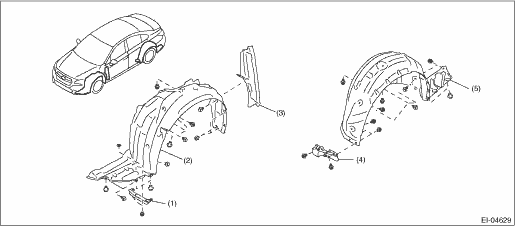

(1)	Air flap - front	(3)	Cover - fender LWR	(5)	Mud guard - rear
(2)	Mud guard - front	(4)	Air flap - rear

Installation

1. Install the mud guard.2. Install the wheel.Tightening torque:Wheel nut: 120 N·m (12.2 kgf-m, 88.5 ft-lb)3. Lower the vehicle. ...
