Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Roof spoiler / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate UPR and the trim panel - rear gate pillar side. Rear Gate Trim > REMOVAL

3. Remove the drip - rear gate. (Except for model with power rear gate)

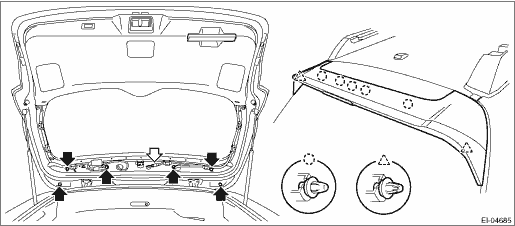

4. Remove the roof spoiler.

(1) Disconnect the connector of high-mounted stop light.

(2) Remove the bolts and nuts.

(3) Remove the clips, and remove the roof spoiler.

Installation

CAUTION:• Make sure that packings are attached on the clips of the roof spoiler assembly. If a gasket is not attached, water leakage may occur.• Connect the connector of the light assembly ...
