Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Sun visor / Removal

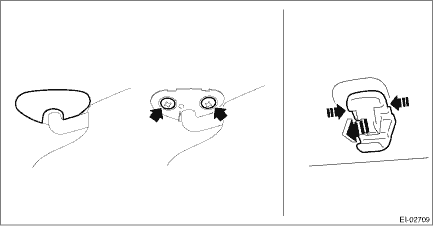

1. Remove the sun visor assembly.

(1) Detach the cover, and remove the screws.

(2) Disconnect the connector, and remove the sun visor assembly.

2. Remove the hook - sun visor.

(1) Press both sides using a flat tip screwdriver.

(2) Remove the hook - sun visor by pulling it toward you.
