Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Trunk lid garnish / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - trunk lid. Trunk Room Trim > REMOVAL

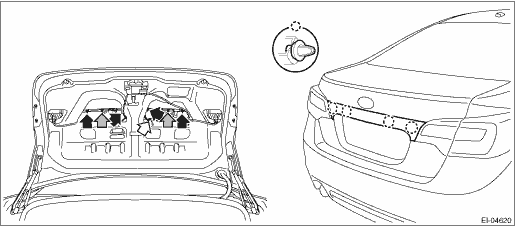

3. Remove the garnish - trunk.

(1) Remove the nut.

(2) Disconnect the clips and connectors, and remove the garnish - trunk.

CAUTION:Make sure that there is a gasket attached on the clip of the garnish assembly. If a gasket is not attached, water leakage may occur.1. Install the garnish - trunk.Tightening torque:4.5 N&middo ...
