1. INTAKE SIDE

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the fuel injector. Fuel Injector > REMOVAL

4. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor.

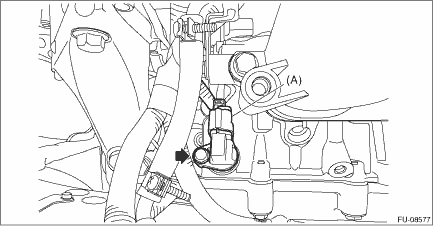

• RH side

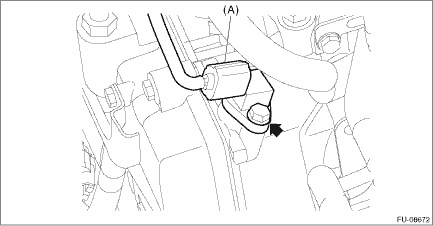

• LH side

2. EXHAUST SIDE

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

3. Remove the under cover. Front Under Cover > REMOVAL

4. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor.

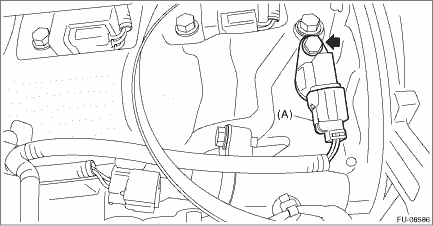

• RH side

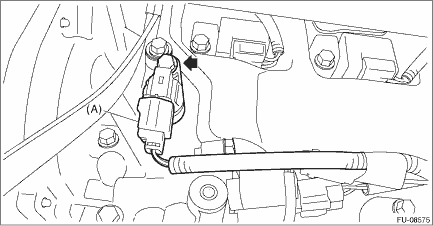

• LH side
