Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Fuel pump control unit / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trunk trim panel assembly - side on the RH side. (Sedan model) Rear Quarter Trim > REMOVAL

3. Remove the right side rear quarter trim. (OUTBACK model) Rear Quarter Trim > REMOVAL

4. Remove the fuel pump control unit.

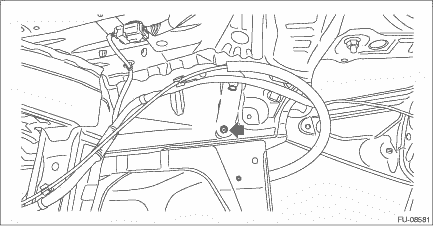

• Sedan model

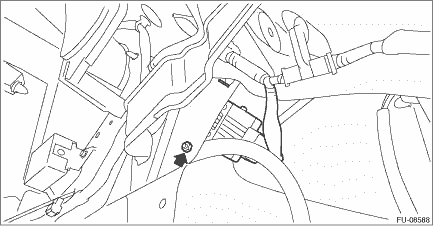

• OUTBACK model

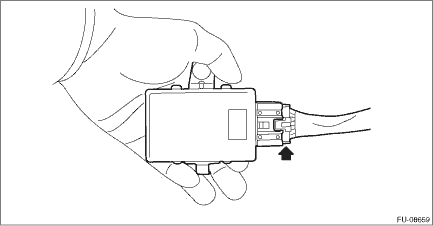

5. Disconnect the connector from fuel pump control unit.

Inspection

Check that the fuel pump control unit has no deformation, cracks or other damages. ...
