Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Heater core / Removal

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the heater and cooling unit assembly. Heater and Cooling Unit > REMOVAL

3. Remove the heater core.

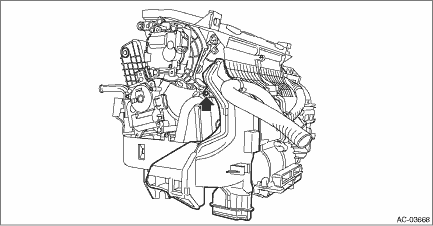

(1) Remove the screws, and remove the duct - foot driver.

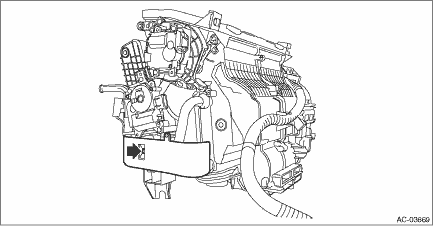

(2) Remove the screw and detach the heater pipe cover.

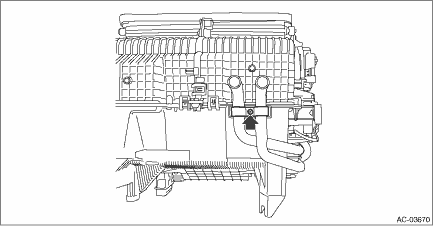

(3) Remove the screw and remove the heater pipe clamp.

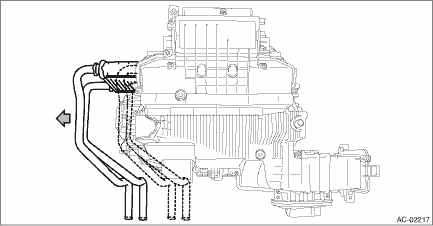

(4) Remove the heater core.

Installation

CAUTION:• Do not start the engine before charging refrigerant.• If the engine is started with no refrigerant charge, replace the compressor assembly.• Replace O-rings and pipe clamps ...
