Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / In-vehicle sensor (auto a c model) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

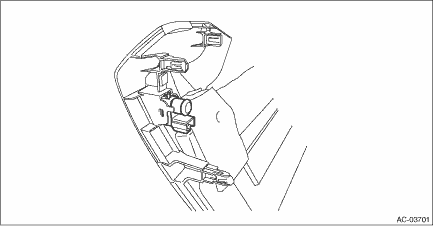

3. Release the claws and remove the in-vehicle sensor.
