Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Rear vent door actuator / Removal

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the instrument panel assembly and the beam COMPL - steering. Instrument Panel Assembly > REMOVAL

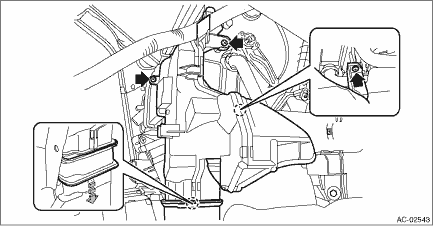

3. Remove the duct - foot assist.

(1) Turn over the floor carpet and remove the slide lock of the duct - rear heater.

(2) Remove the screws, and remove the duct - foot assist.

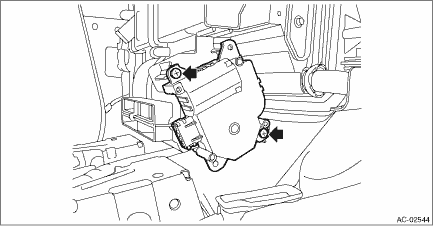

4. Remove the screws and remove the motor assembly - rear heater.

1. ACTUATOR LINK1. Visually check the operating range of the link, and remove the foreign matter if any.2. Operate the temperature control switch, and check that the link operates normally.3. If it do ...
