Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Instrumentation driver info / Warning box / Removal

1. MODELS WITHOUT EyeSight

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the overhead console.

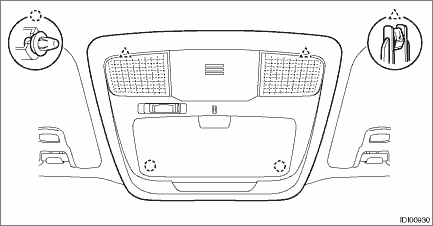

(1) Release the clips and claws.

(2) Disconnect the connector, and remove the overhead console.

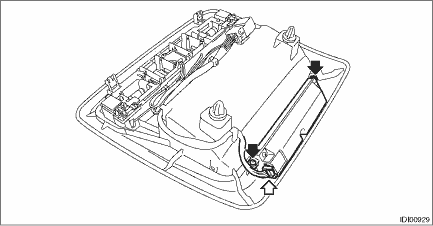

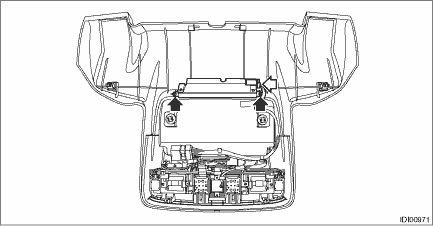

3. Remove connector and screw, and remove the warning box.

2. MODELS WITH EyeSight

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the stereo camera cover assembly. Stereo Camera > REMOVAL

3. Remove connector and screw, and remove the warning box.

Installation

CAUTION:• Make sure the electrical connector is connected securely.• Make sure that each indicator operates normally.1. Install the warning box.2. Install the overhead console. (Models wit ...
