Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Front fog light assembly / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

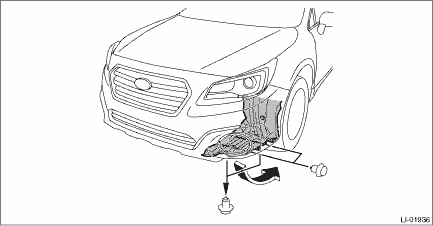

3. Remove the clips, and turn over the mud guard - front.

4. Remove the fog light assembly - front.

(1) Disconnect the connector.

(2) Remove the screws and clips, and remove the fog light assembly - front.

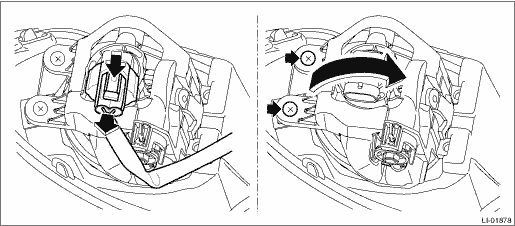

• Sedan model

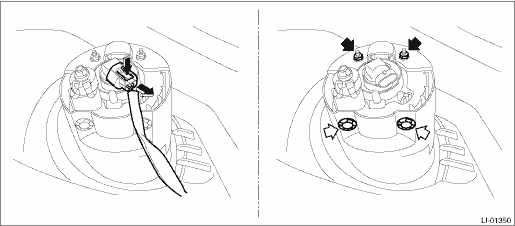

• OUTBACK model

Adjustment

1. FOG LIGHT AIMING1. Before checking the fog light beam level, be sure of the following:• Check the area around the fog light for any scratches, damage or other type of deformation.• The ...
