Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Front fog light assembly / Adjustment

1. FOG LIGHT AIMING

1. Before checking the fog light beam level, be sure of the following:

• Check the area around the fog light for any scratches, damage or other type of deformation.

• The vehicle is parked on a level surface.

• The inflation pressure of tires is correct.

• The vehicle does not have load.

• Vehicle’s fuel tank is fully filled.

2. Bounce the vehicle several times to normalize the suspension.

3. Make certain that someone is seated in the driver’s seat.

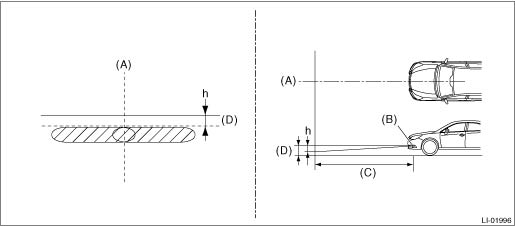

4. Place the vehicle with the front end facing to the measurement panel.

(A)	Vehicle center	(C)	3 m (10 ft)	(D)	Height of fog light center
(B)	Bulb center marking

h mm (in) at 3 m (10 ft)
40 (1.58)

5. Adjust the fog light beam.

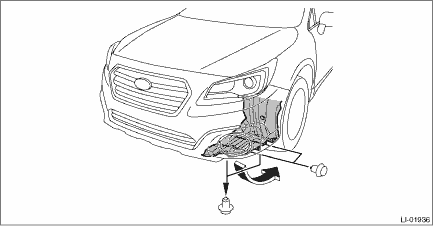

(1) Remove the clips, and turn over the mud guard - front.

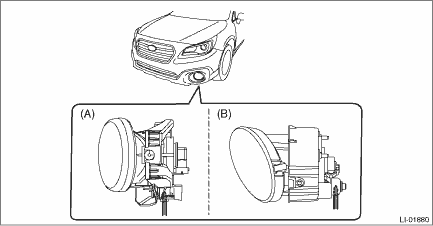

(2) Adjust the beam level by turning the aiming screw.

(A)

Sedan model

(B)

OUTBACK model

(3) Install the mud guard - front.

CAUTION:

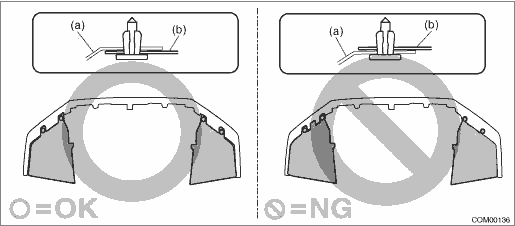

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Lift up the vehicle.3. Remove the clips, and turn over the mud guard - front.4. Remove the fog light assembly - front.(1) Disconnect the ...

Installation

CAUTION:Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).1. Install the fog light assembly - front.2. Install the mud guard - front.3. ...
