Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Front fog light assembly / Installation

CAUTION:

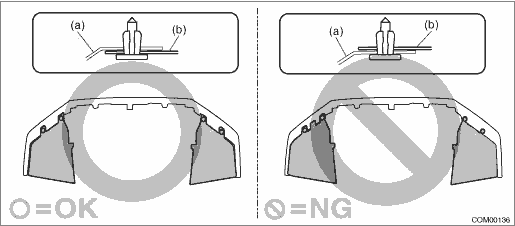

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

1. Install the fog light assembly - front.

2. Install the mud guard - front.

3. Lower the vehicle.

4. Connect the ground terminal to battery sensor. NOTE

5. Adjust the fog light beam. Front Fog Light Assembly > ADJUSTMENT

Adjustment

1. FOG LIGHT AIMING1. Before checking the fog light beam level, be sure of the following:• Check the area around the fog light for any scratches, damage or other type of deformation.• The ...

Disassembly

CAUTION:Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.Rotate in the direction of arrow shown in the figure to remove the front fog light bulb.• Sedan ...
