Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Headlight assembly / Removal

CAUTION:

Do not perform work with wet hands, because there is a possibility of electrical shock.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front. Front Bumper > REMOVAL

3. Remove the cover - front fender.

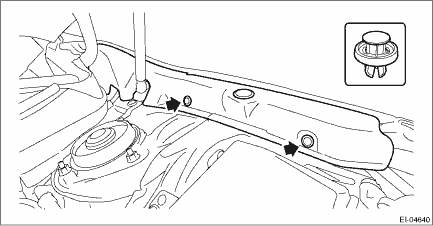

(1) Remove the clip.

(2) Release the claws, and then remove the cover - front fender UPR.

4. Remove the bolts, and then remove the bracket - front bumper corner.

5. Remove the light assembly - head.

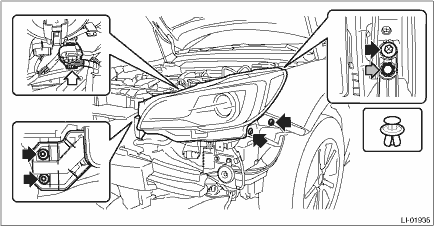

(1) Disconnect the connector.

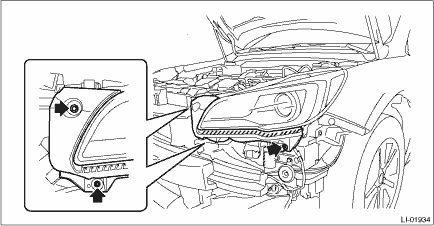

(2) Remove the bolts and clips, and remove the light assembly - head.

Adjustment

1. HEADLIGHT BEAM ADJUSTMENTCAUTION:• Turn off the light before adjusting the headlight beam level. If it is necessary to inspect the beam level, do not keep the light on for two minutes or more ...
