Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h4do) / Oil level switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the under cover. Front Under Cover > REMOVAL

3. Drain the engine oil. Engine Oil > REPLACEMENT

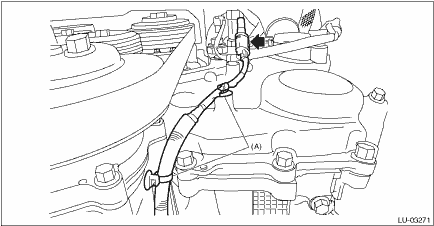

4. Disconnect the oil level switch connector from the engine harness, and remove the clip (A) securing the harness.

5. Remove clip (A) from the oil pan upper, and remove the oil level switch.

Inspection

1. INSPECTION WHEN LOW ENGINE OIL WARNING LIGHT ILLUMINATES ON LCDSTEPCHECKYESNO1.CHECK ENGINE OIL LEVEL.Is engine oil level normal- Oil Level Switch > INSPECTIONReplace engine oil or refill, and chec ...

Installation

1. Install the oil level switch, and install the clip (A) to the oil pan upper.NOTE:• Use new O-rings.• Apply a coat of engine oil to the O-rings.Tightening torque:6.4 N·m (0.7 kgf- ...
