Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Manual transmission and differential(6mt) / Air breather hose / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

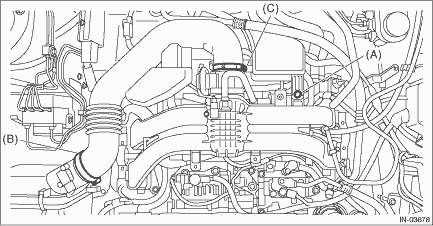

2. Remove the clip (A) from the air intake boot.

3. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).

4. Loosen the clamp (C) which connects the air intake boot and throttle body.

5. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

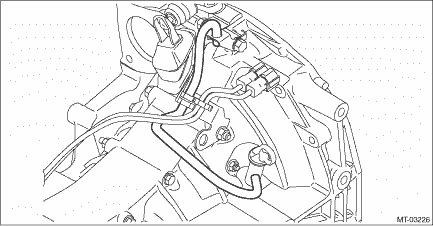

6. Remove the air breather hose.

Inspection

Check the hose for peeling, crack or clogging. ...
