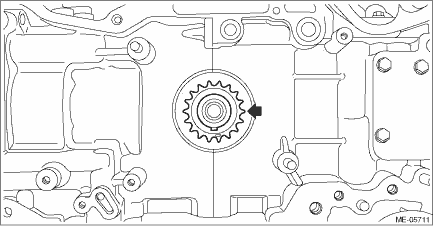

NOTE: When replacing a single part, perform the work with the engine assembly installed to body. 1. Remove the chain cover. Chain Cover > REMOVAL 2. Remove the timing chain. Timing Chain Assembly > REMOVAL 3. Remove the crank sprocket.
|
Crank sprocket
InspectionRemoval
1. CONSOLE1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE2. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL3. While releasing the claw inside, press it in from the rear to remove the socket ...
