Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Mechanical(h6do) / Camshaft / Removal

1. Remove the engine from vehicle. Engine Assembly > REMOVAL

2. Remove the crank pulley. Crank Pulley > REMOVAL

3. Remove the chain cover. Chain Cover > REMOVAL

4. Remove the timing chain assembly. Timing Chain Assembly > REMOVAL

5. Remove the cam sprocket. Cam Sprocket > REMOVAL

6. Remove the crank sprocket. Crank Sprocket > REMOVAL

7. Remove the exhaust oil flow control solenoid valve. Oil Flow Control Solenoid Valve > REMOVAL

8. Remove the camshaft position sensor. Camshaft Position Sensor > REMOVAL

9. Loosen the rocker cover bolts in the order indicated in the figure, and remove the rocker cover.

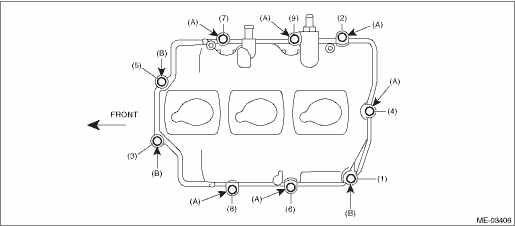

• LH side

(A)

M6 - 39.5

(B)

M6 - 26.3

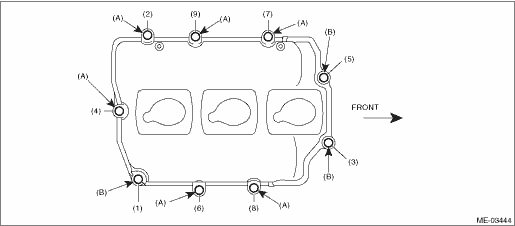

• RH side

(A)

M6 - 39.5

(B)

M6 - 26.3

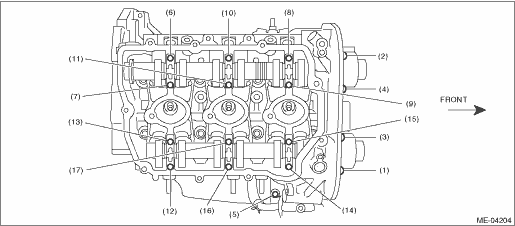

10. Loosen the camshaft cap bolts equally, a little at a time in numerical sequence, as shown in the figure.

11. Remove the camshaft caps and camshaft (RH).

NOTE:

Arrange camshaft caps in order so that they can be installed in their original positions.

12. Similarly, remove the camshaft (LH) and related parts.
