Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Power rear gate system / Power rear gate buzzer / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

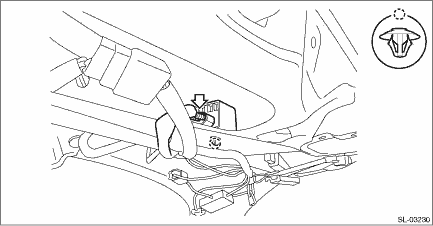

3. Remove the power rear gate buzzer.

(1) Disconnect the connector.

(2) Release the claws, and then remove the power rear gate buzzer.

Inspection

Refer to “Basic Diagnostic Procedure” of “POWER REAR GATE SYSTEM (DIAGNOSTICS)”. Diagnostics with Phenomenon > INSPECTION ...
