Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Front inner remote / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

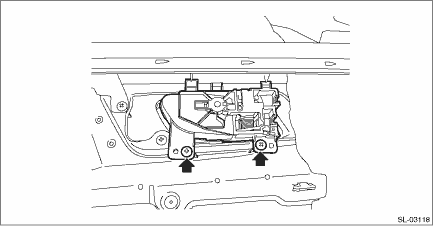

3. Remove the screw, and remove the remote assembly - door.

Inspection

Check if the remote handle operates normally.• If the lever is faulty, replace the remote handle.• If the cable is deformed, replace the latch & actuator assembly - front. ...
