Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Keyless access cm / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the combination meter assembly. Combination Meter > REMOVAL

3. Remove the keyless access CM.

(1) Remove the reinforcement - combination meter.

NOTE:

For model with navigation and model with telematics, remove the GPS antenna assembly. GPS Antenna > REMOVAL

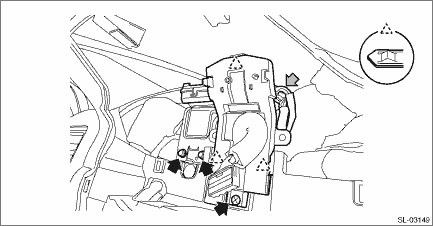

(2) Disconnect the connector and remove the bolt.

NOTE:Make sure that there are no differences from the contents of the current settings after installation. Read Current Data > LIST1. Install the reinforcement - combination meter and keyless access ...
