Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Keyless access outdoor antenna / Removal

1. FRONT ANTENNA

CAUTION:

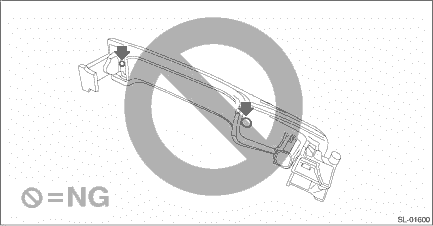

Do not detach the antenna from the front door outer handle.

If replacement is required, replace the front outer handle assembly as a whole.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the handle - door outer. Front Outer Handle > REMOVAL

2. REAR ANTENNA (SEDAN MODEL)

CAUTION:

Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - trunk lid. Trunk Room Trim > REMOVAL

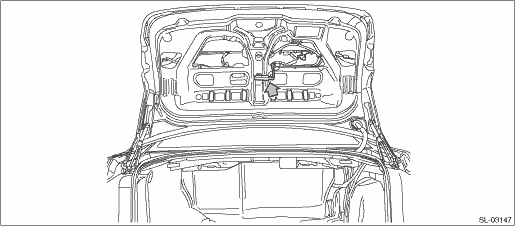

3. Disconnect the connector and remove the rear antenna assembly - exterior.

3. REAR ANTENNA (OUTBACK MODEL)

CAUTION:

Do not detach the antenna except when replacing it. Detaching unnecessarily will lead to insecure attachment of the antenna.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

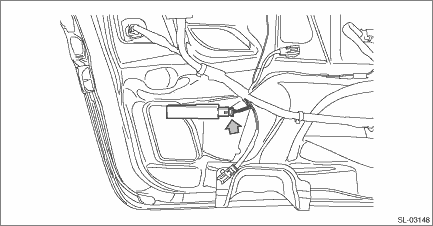

3. Disconnect the connector and remove the rear antenna assembly - exterior.
