Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Keyless buzzer / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

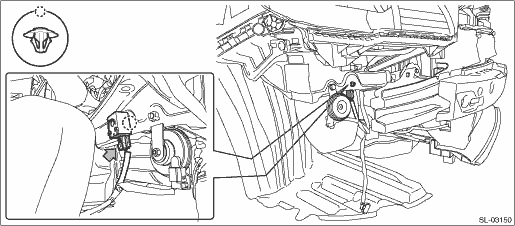

2. Remove the keyless buzzer.

(1) Remove the clips, and turn over the mud guard - front.

(2) Disconnect the connector.

(3) Remove the clip and detach the keyless buzzer.

Inspection

• Using the Subaru Select Monitor, set the volume of the keyless buzzer. User Customizing• Using the Subaru Select Monitor, perform forced operation of the keyless buzzer. User Customizi ...
