Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. KEYLESS TRANSMITTER BATTERY

CAUTION:

To prevent static electricity damage to the keyless transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the keyless transmitter.

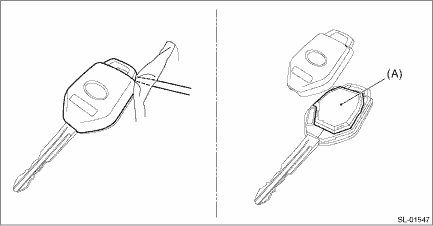

1. Remove the keyless transmitter cover, and take out the transmitter case (A).

NOTE:

Use a flat tip screwdriver with protective tape or cloth in order not to damage the components.

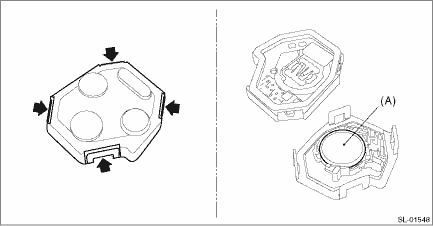

2. Release the claws to open the transmitter case, then remove the battery (A).

Inspection
1. KEYLESS TRANSMITTER BATTERY1. Measure the keyless transmitter battery voltage.Preparation tool:Circuit testerNOTE:Complete the measurement within 5 seconds because the battery discharges during mea ...

Installation
1. KEYLESS TRANSMITTER BATTERYInstall each part in the reverse order of removal. ...
