1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

3. Remove the visor assembly - lower.

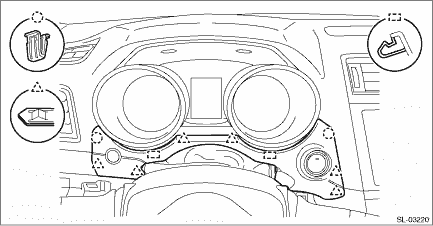

(1) Release the clips and claws.

(2) Disconnect the connector and remove the visor assembly - lower.

CAUTION:

• Being careful not to damage the visor assembly - lower, slowly remove the clips and claws one by one from the right and left edges of visor assembly - lower.

• When using a clip remover, wrap it with protective tape or cloth.

4. Remove the push button ignition switch.

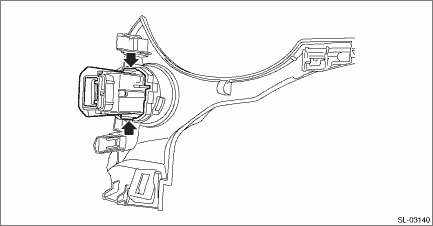

(1) Release the claws and remove the push button ignition switch from the visor assembly - lower.

1. Check the continuity between the connectors.Preparation tool:Circuit testerTerminal No.Inspection conditionsSpecification4 (COM) — 5 (GND)AlwaysContinuity exists7 (SSW1) — 5 (GND)Push button ig ...
