Subaru Legacy BN/BS (2015-2019) Service Manual / Speed control systems(h4do) / Accelerator pedal / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

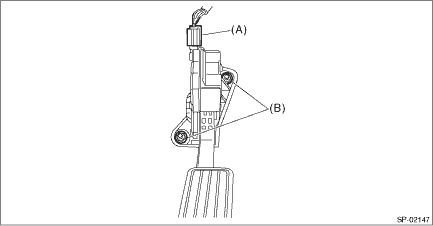

2. Disconnect the connector (A).

3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

Disassembly

NOTE:The accelerator pedal cannot be disassembled. ...
