Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Intake (induction)(h6do) / Air intake duct / Removal

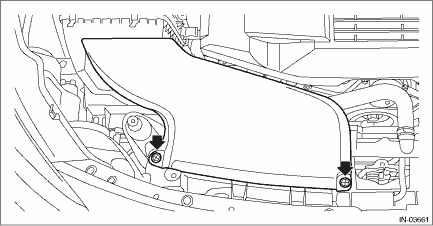

Remove the clip which secures the air intake duct, and remove the air intake duct.
