Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Emission control (aux. Emission control devices)(h6do) / Pcv valve / Removal

CAUTION:

Do not remove unless the PCV valve is broken.

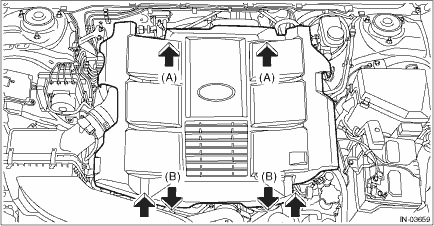

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Remove the battery. Battery > REMOVAL

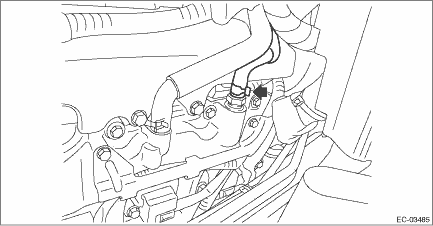

3. Disconnect the PCV hose.

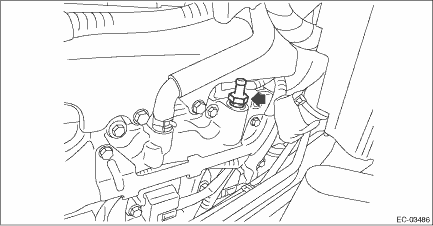

4. Remove the PCV valve from rocker cover.
