Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

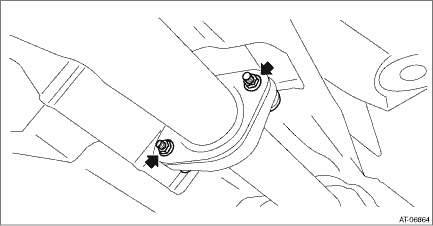

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts. 1. Lift up the vehicle. 2. Remove the bolts, springs, and nuts securing the center exhaust pipe to the rear exhaust pipe.

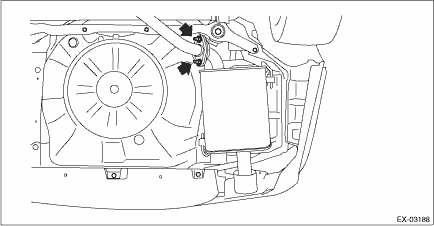

3. Remove the bolts and self-locking nuts securing the mufflers to the rear exhaust pipes. CAUTION: Be careful not to drop the rear exhaust pipe.

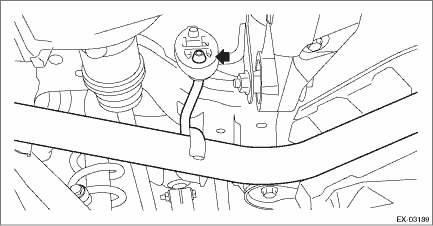

4. Apply a coat of spray type lubricant to the mating area of cushion rubber. 5. Remove the rear exhaust pipe from the cushion rubber. CAUTION: Be careful not to let the muffler contact the rear bumper.
|
Inspection
1. Check the connections and welded parts for exhaust leaks.2. Make sure there are no holes or rusting.3. Check the cushion rubber for wear or crack. ...
