Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

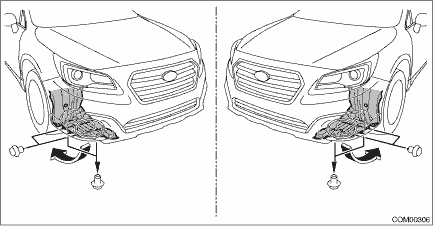

CAUTION: When removing the horn, do not remove the bumper face – front. Bracket connection portion of the bumper face may become damaged. 1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Remove the clips, and turn over the mud guard - front.

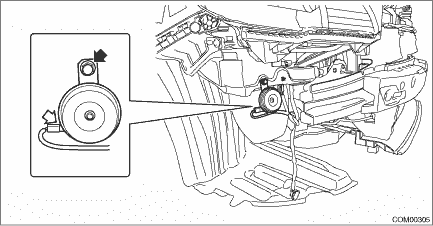

NOTE: • Hi side: Turn over the mud guard - front RH. • Lo side: Turn over the mud guard - front LH. 4. Remove the horn assembly - Hi. (1) Disconnect the connector. (2) Remove the horn bracket mounting bolt, and remove the horn assembly - Hi.
5. Remove the horn assembly - Lo. (1) Disconnect the connector. (2) Remove the horn bracket mounting bolt, and remove the horn assembly - Lo. CAUTION: The resistor may become hot. Be careful not to burn yourself.
|
Horn
...
Inspection
1. Remove the horn assembly (Hi side & Lo side). Horn > REMOVAL2. Check the horn sounds when applying the battery voltage to the horn assembly.• Horn assembly - Lo sideTerminal No.Inspection co ...
