Subaru Legacy BN/BS (2015-2019) Service Manual: Replacement

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / A c filter / Replacement

1. Remove the pocket assembly. Glove Box > REMOVAL

2. Remove the A/C filter.

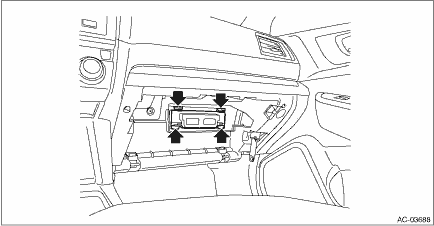

(1) Release the lock and remove the A/C filter cover.

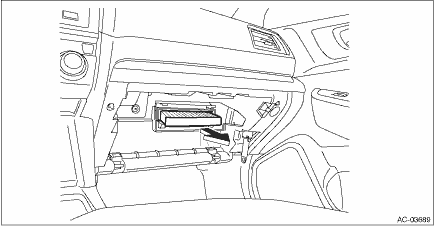

(2) Remove the A/C filter.

NOTE:

Pull out slowly so that foreign materials attached to the filter do not fall into the filter insertion part.

3. Install a new A/C filter.

4. Install the pocket assembly.

Inspection

Check the A/C filter for dust or dirt, and clean or replace as necessary. ...
