Subaru Legacy BN/BS (2015-2019) Service Manual: Specification

Subaru Legacy BN/BS (2015-2019) Service Manual / Rear suspension / General description / Specification

1. SEDAN MODEL

Tire size		P225/55R17 P225/50R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	383 (15.08)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		−1°25'
Toe-in	mm (in)	IN3±3 (IN0.12±0.12)
		Toe angle (sum of both wheels): IN0°15'±15'
Thrust angle (tolerance: 0°00'±30')		0°00'

2. OUTBACK MODEL

Tire size		P225/65R17 P225/60R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	468 (18.43)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		−1°00'
Toe-in	mm (in)	IN3±3 (IN0.12±0.12)
		Toe angle (sum of both wheels): IN0°14'±14'
Thrust angle (tolerance: 0°00'±30')		0°00'

NOTE:

• Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.

• Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.

• If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.

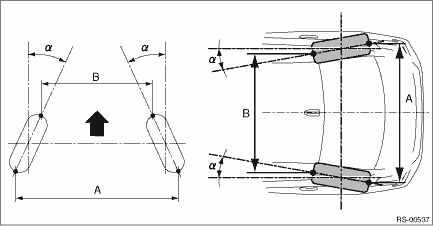

A − B = Positive: Toe-in, Negative: Toe-out

α = Individual toe angles
